DigiTech Whammy 5 Pitch Shifting Pedal With MIDI

DigiTech Whammy 5 Pitch Shifting Pedal With MIDI

The legendary Whammy pedal is the premier pitch-shifting pedal for any guitarist’s board, and it only gets better with time. In addition to the classic Whammy sound, we’ve added chordal Whammy pitch-shifting and true bypass.

Whammy artists have won over 60 Grammys® using its unique pitch-shifting sound to enhance their music. Its songs echo the hallways of the Rock & Roll Hall of Fame® and generate acclaim on over 700 million albums around the world. There is no doubt why Whammy is one of the most common sights on guitarists’ pedalboards.

The Whammy can bring new depth to your artistry. Turn your solo into raging, rebellious screams of tone or tame your crowd with highly expressive, ambient chordal bends. Energize your audience with a scratchy note frenzy, bring them in and out of the sound tunnel with musical bursts, or carry them through an existential exploration of full-fretboard pitch translation. The Whammy puts expression into the expression pedal.

Whammy Pitch Bending Effects

The DigiTech Whammy brings you the same hair-raising “dive bomb” effects, gripping pitch bends and lightning harmony shifts you are looking for plus a few new twists. Bend entire chords with the new chordal pitch shifting setting, and execute classic single note bends.

Classic Whammy Interface

The Whammy interface features the same legacy Whammy pitch bending options you’re accustomed to along with some additional pitch bend settings from the Whammy DT.

MIDI In for Remote Control of Whammy Effects

The Whammy features a MIDI input for receiving incoming MIDI data. MIDI messages can select a Whammy or Drop Tune effect and set whether these effects are in an active or bypassed state. MIDI CC messages can then be used to control the Whammy Expression Pedal position.



General Specifications

SAMPLE RATE

44.1 kHz

FREQUENCY RESPONSE

20 Hz to 20 kHz

SIGNAL TO NOISE RATIO

> -105 dB (A weighted); ref = max level, 22 kHz bandwidth

THD

0.004% @ 1 kHz; ref = 1 dBu w/ unity

A/D CONVERSION

24 bit

D/A CONVERSION

24 bit

POWER CONSUMPTION

2.4 Watts (< 265 mA @ 9 VDC)

POWER ADAPTER

9 VDC External Adapter

TRUE BYPASS

Yes. With true bypass circuitry, the whammy is completely bypassed when both Whammy and Drop Tune effects are off.
Dimensions

HEIGHT

2.5" (64mm)

WIDTH

6.5" (165mm)

DEPTH

7.75" (197mm)
Audio Output

OUTPUT TYPE

1/4” Unbalanced TS

MAX OUTPUT LEVEL

+10 dBu

OUTPUT IMPEDANCE

1 kΩ
Audio Input

INSTRUMENT INPUT TYPE

1/4” Unbalanced TS

MAX INPUT LEVEL

+5 dBu

INPUT IMPEDANCE

1 MΩ

MIDI INPUT

5-Pin Din

    $1,357.69

    Original: $4,525.64

    -70%
    DigiTech Whammy 5 Pitch Shifting Pedal With MIDI

    $4,525.64

    $1,357.69

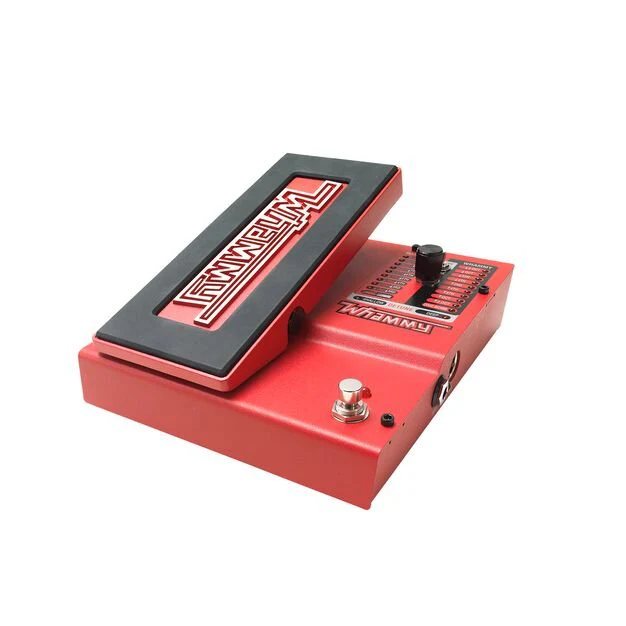

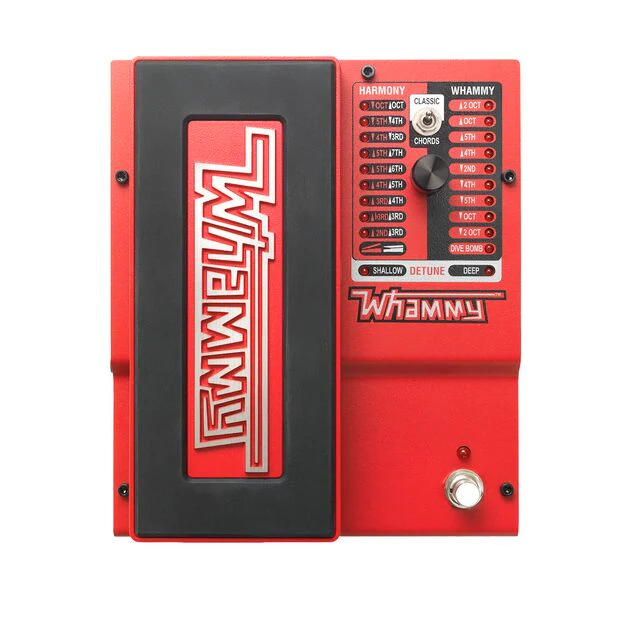

    Product image 1

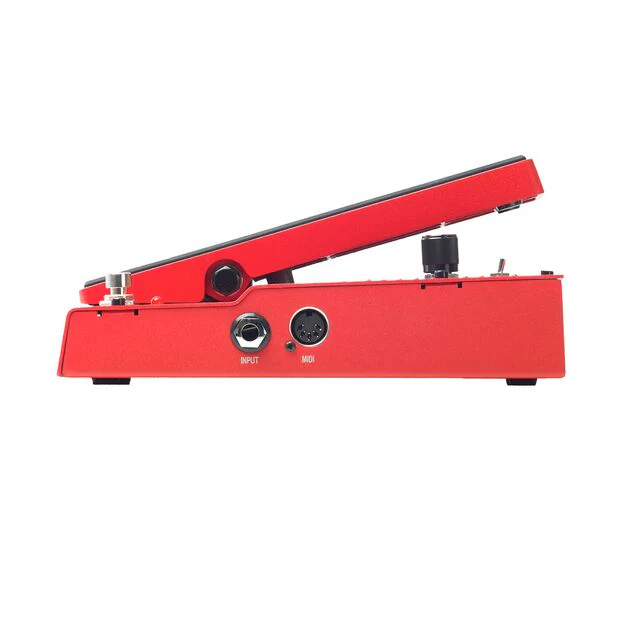

    Product image 2

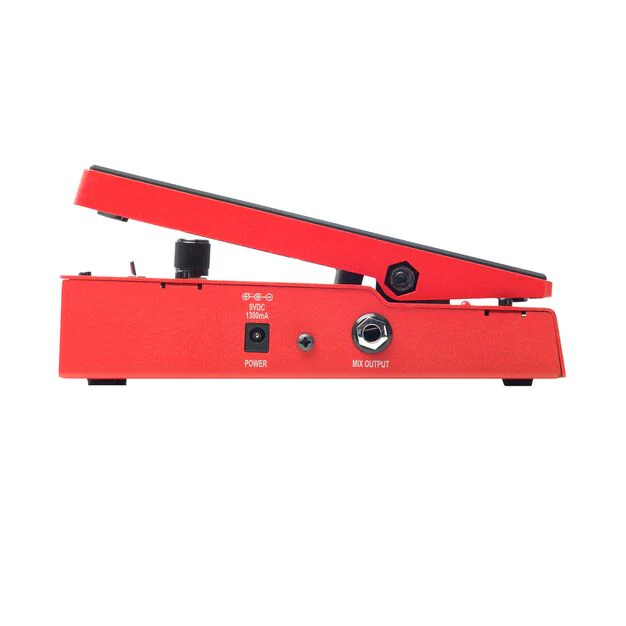

    Product image 3
